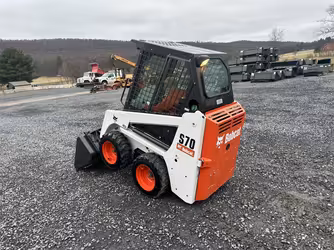

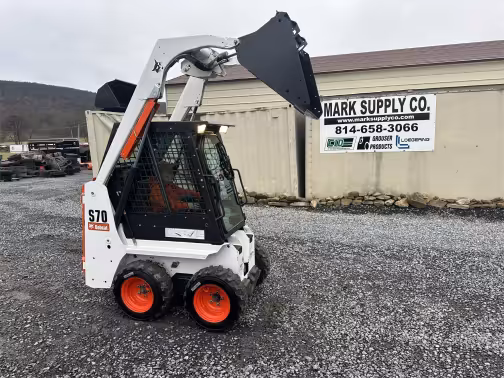

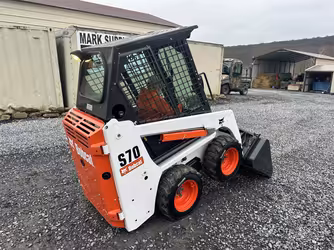

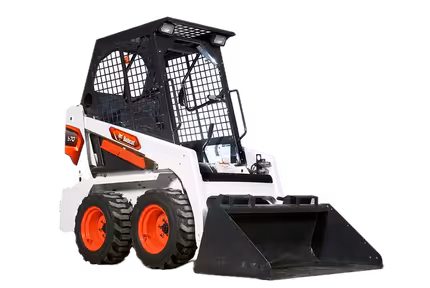

Bobcat S70 Skid steer loaders tech specs
Think of the Bobcat S70 as a powerhouse packed into a compact frame—3 feet wide, solid 23.5 hp diesel power, and rugged enough to tackle jobs where full-sized loaders can’t go. It’s small, but damn capable.
~23.5 hp Kubota D1005 diesel, Tier 4, liquid-cooled
Operating weight ~1,268 kg (2,795 lb)
Rated capacity ~318–344 kg (700–760 lb); tipping load ~686 kg (1,512 lb)
Dimensions: ~0.9 m wide, length with bucket ~1,950 mm (6.4 ft), height ~1,814 mm (6 ft)
Aux hydraulics standard (~9.8 gal/min), lift height ~1.89–2.4 m
Bobcat S70 Technical specifications
General
Max dump height
1951 mm
Engine model
D1005-E
Bucket width
914.4 mm
Bucket capacity
0.21 cu m
Tipping load
740 kg
Max speed forward
9.82 kph
Operating weight
1268.02 kg
Tire size
5.7-12
Dimensions
Height - top of cab
1.83 m
Transport length
2.5 m
Turning radius
1.5 m
Wheelbase
0.73 m
Transport width
0.91 m
Operating specifications
Max dump reach
400 mm
Rack back angle
15 º
Engine
Aspiration
Natural
Displacement
1001.25 cu cm
Emissions
Tier 4
Gross power
17.15 kW
Hydraulic system
Pump flow cap
37.09 lpm
Relief valve pressure
206.84 bar
Service refill capacities
Hydraulic fluid cap
10 liter
Fuel cap
24.6 liter
Operational specifications
Lifting capacity
317.52 kg
Bobcat S70 expert review
Overview
Built to navigate tight quarters, the S70 blends compact design with diesel power and hydraulic versatility via quick-attach functionality.

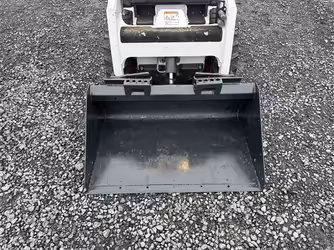

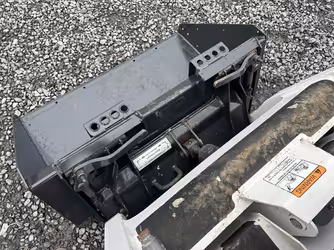

Diesel reliability with aux hydraulics and Bob-Tach versatile ends.
Specs scattered—no single source.
Performance & Efficiency
Efficient Kubota diesel engine with hydrostatic drive delivers smooth power, and 9.8 gal/min aux flow supports a range of attachments.
In Comparison
Think of it as a loader version of a QH12 or micro-excavator—not a digger but a mover in tight spaces.
Verdict
Perfect if tight spaces and basic loader work are in your job specs—but not the pick for comfort or heavy digging demands.
Bobcat S70 owner rating
2008-2017
Overall rating
Based on 0 ratings
5.0
5.0
5.0
5.0
4.0
100 %
0 %
0 %
0 %
0 %

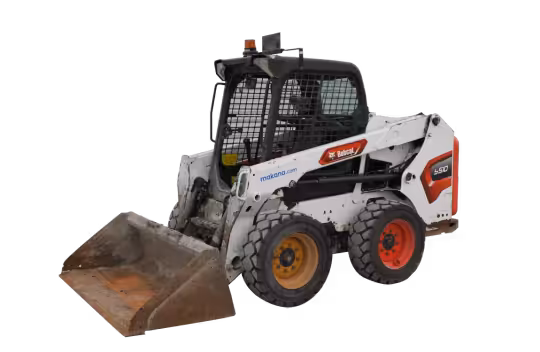

:quality(50)/products/10051/view_360/SL-217_thumbnail_00000.webp "Bobcat S510 skid steer loader")

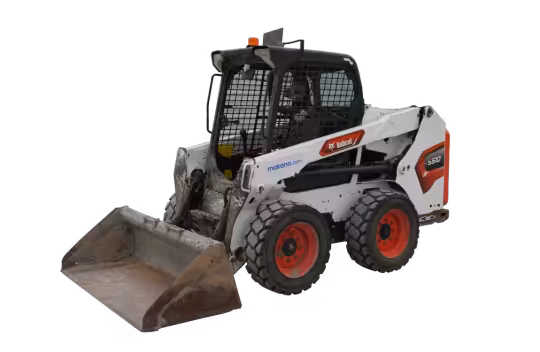

:quality(50)/products/10054/view_360/SSL-1.webp "Bobcat S510 skid steer loader")

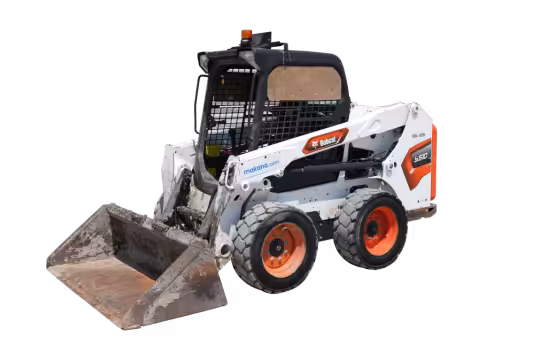

:quality(50)/products/10071/view_360/SSL-005---1.webp "Bobcat S510 skid steer loader")

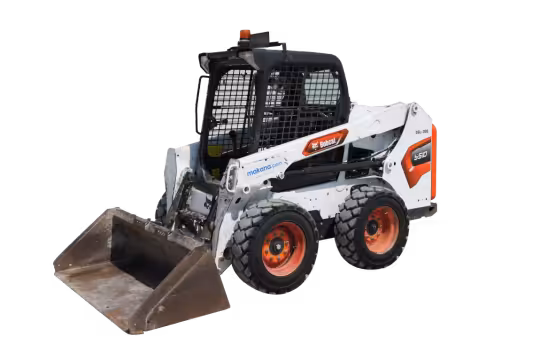

:quality(50)/products/10072/view_360/SSL-006_Thumbnail_00000.webp "Bobcat S510 skid steer loader")
