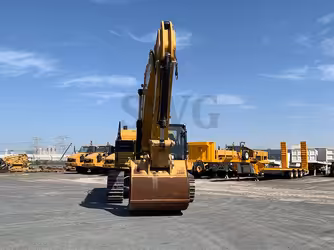

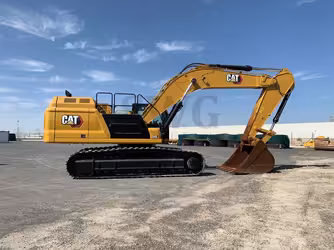

Cat 349 Large excavators

100K+ machines in details.

Cat 349 Large excavators tech specs

2017-2019

45,200 kg Operating weight

10,340 mm Max dump height

2 m³ Bucket capacity

7,990 m Max digging depth

13,270 mm Max digging reach

214 kW Gross power

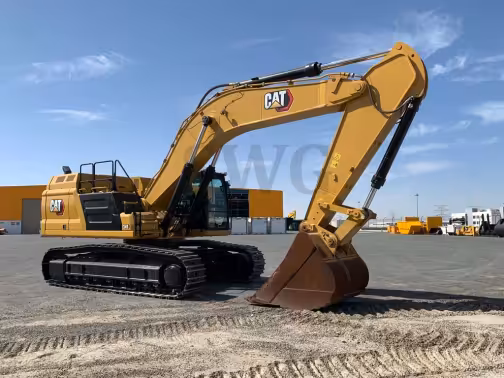

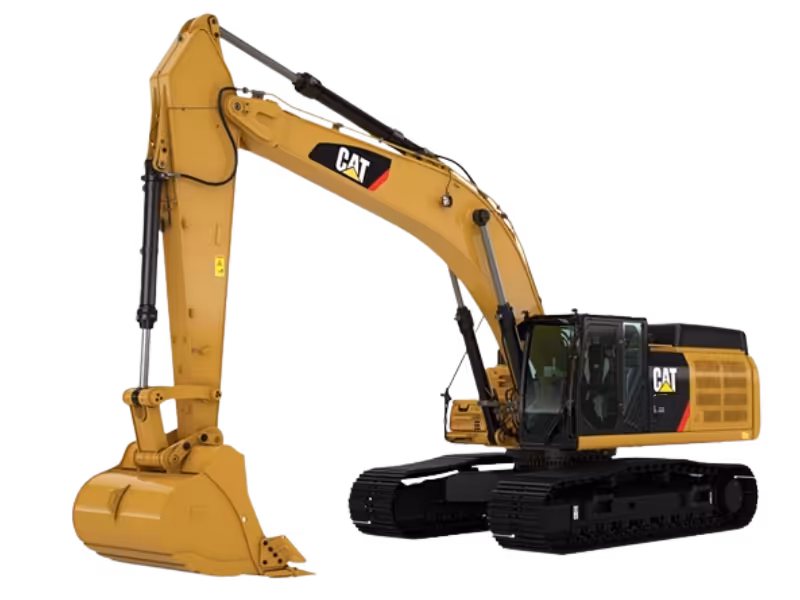

The Cat 349F L brings heavy-duty power and smart tech to a 48.6 t (107,100 lb) chassis. With a 3.1 m³ bucket, 7.66 m dig depth, and factory Grade Assist, it handles massive jobs with precision and efficiency.

311 kW (417 hp) C13 power in a 48.6 t frame

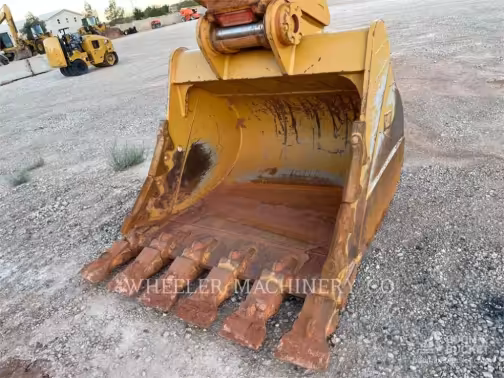

3.1 m³ bucket capacity for serious material moves

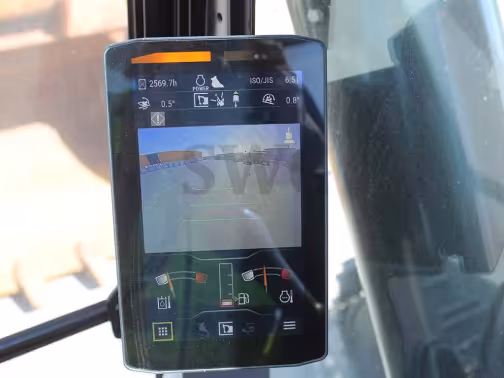

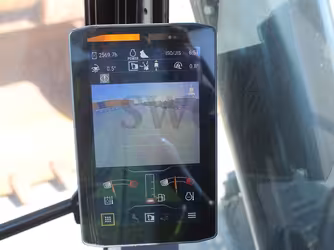

Cat Grade, Payload, Lift Assist, E‑Fence standard

Better fuel economy and up to 15 % lower maintenance costs

Show features

Makana rating

Owner rating

| 1

Market average

AED 1,200,000

Starting from

AED 600,000

Cat 349 Technical specifications

General

Engine model

Komatsu SAA6D125E-5

Operating weight

45200 kg

Max dump height

10340 mm

Boom length

7.5 m

Gradeability

70 º

Bucket width

1520 mm

Bucket capacity

1.9 m³

Max speed forward

5.5 kph

Max digging depth

7990 m

Max digging reach

13270 mm

Engine

Displacement

15200 cm3

Gross power

214.02 kW

Operational specifications

Swing speed

9.2 rpm

Arm crowding force

248 kN

Undercarriage

Drawbar Pull

374 kN

Track width

8 mm

Track length

4.58 m

Attachments

Bucket digging force

275 kN

Dimensions

Height - top of cab

3.22 m

Hydraulic system

Pump flow cap

492 lpm

Relief valve pressure

343.08 bar

Service refill capacities

Engine oil cap

32 liter

Fuel cap

710 liter

Hydraulic fluid cap

290 liter

Download datasheets

OEM product brochure

Cat 349 expert review

Reviewed by Raul M. on September 3, 2025

Overview

The 349F L is a large crawler excavator weighing 48.6 t (107,145 lb), equipped with a 311 kW (417 hp) Cat C13 ACERT engine. It achieves a dig depth of 7.66 m and horizontal reach of about 11.73 m. Bucket capacity is 3.1 m³, tear-out force 267 kN, and transport size is roughly 12.5 m long, 3.34 m wide, and about 3.71 m high.

Pros Large bucket and depth boost dig output.
Fully integrated Cat tech increases precision and reduces mistakes.

Cons Nearly 49 t of mass demands solid ground and careful transport prep.
Advanced tech setup requires operator training to unlock full value.

Performance & Efficiency

Smart Mode aligns hydraulic and engine output to load needs, enhancing fuel efficiency by up to 10 %. Maintenance is more economical—15 % lower—thanks to extended service intervals and accessible layout.

In Comparison

Compared to older 349s, the F L adds power and smart tools without much extra weight. Compared to newer Cat excavators, it keeps things simpler while staying production-ready.
