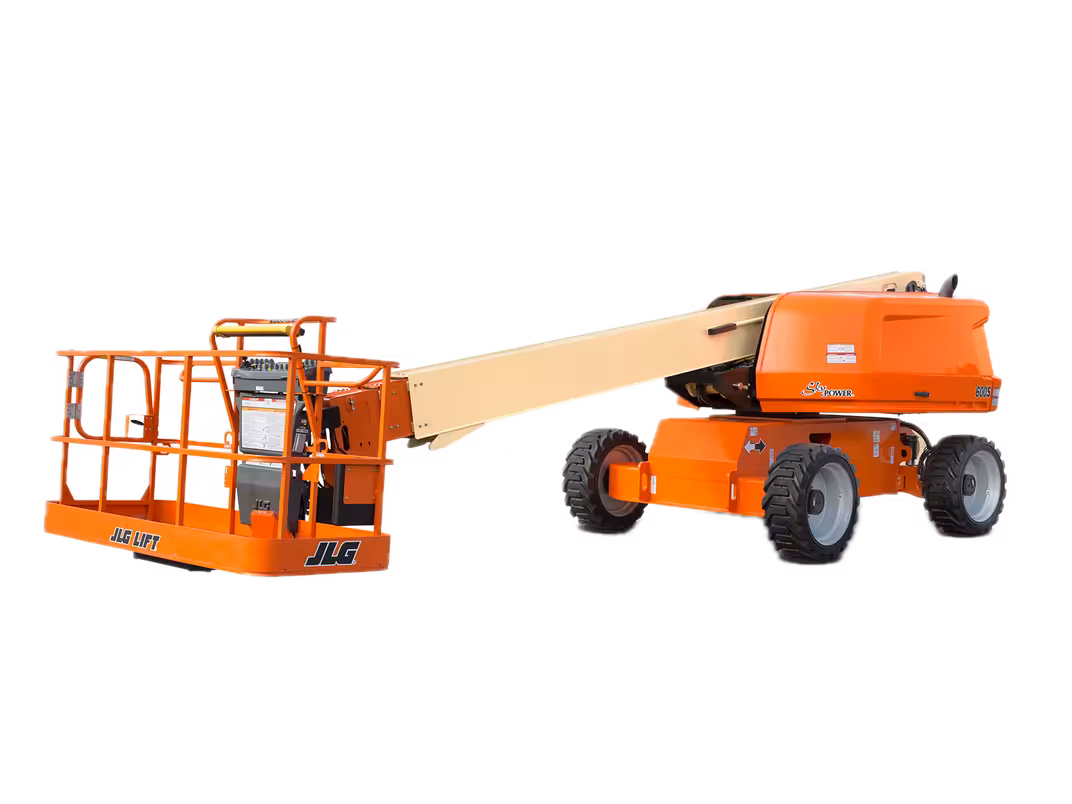

JLG 600 Boom lifts tech specs

Video[1]

Interior [2]

Exterior [4]

Attachments [2]

2013-2020

AT/60.7 Boom Type

2.56 m Stowed height

2.44 m Overall Width

14x17.5 Tire size

4WD Drive type

The JLG 600 AJ brings class-leading reach—18.5 m (60 ft 7 in) platform height and 12.1 m (39 ft 9 in) horizontal reach—all while hugging a zero-tail-swing footprint. It handles up to 227 kg (500 lb), cruises in tight construction zones with full-height 4WD drive, and keeps uptime high without fuss.

Working / Platform Height: ~18.5 m (60 ft 7 in) / ~18.5 m (platform height)

Horizontal Reach: ~12.1 m (39 ft 9 in)

Up-and-Over Height: ~8.1 m (26 ft 7 in)

Platform Capacity: 227 kg (500 lb) unrestricted

Platform Size: ~0.91 m × 1.83 m, side-entry with self-closing gate

Weight: approx. 10,300 kg (22,700 lb)

Drive & Gradeability: 4WD, drivable at full height, speed ~6.8 km/h; gradeability ~45 %

Rotation & Jib: Continuous 360° swing, 180° platform rotator, jib ~1.83 m with ±70°/–60° articulation

Power Options: Diesel (Deutz Tier-4, ~49 hp) or Dual-Fuel (Ford ~84 hp), fuel tank ~114 L

Makana rating

Owner rating

| 1

Market average

AED 19,800

Starting from

AED 15,000

JLG 600 Technical specifications

Performance

Boom Type

AT/60.7

Dimensions

Stowed height

2.56 m

Overall Width

2.44 m

General

Tire size

14x17.5

Drive type

4WD

Download datasheets

OEM product brochure

JLG 600 expert review

Reviewed by Mohamad H. on September 10, 2025

Overview

Reach tall, stay narrow—smart design that stays running when others quit.

Pros Top-tier height and reach in tight footprint.
Rugged and maneuverable with smart uptime design.

Cons Heavy platform—logistics matter.
Diesel/dual-fuel—fuel strategy needed.

Performance & Efficiency

Precise handling, steady traction, smart control layout—built to cut downtime, not corners.

Verdict

JLG 600 AJ hits high, stays true—lean, powerful, and built for real jobs.

Show less

JLG 600 owner rating

JLG 600 Boom lifts [2013-2020]

2013-2020

Overall rating

Based on 1 ratings

4.0

5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Valuation

Last 12 month

2013

JLG 600 similar models

Highlight differences

JLG 600AJ

Haulotte HA16SPX

Skyjack SJ63 AJ

Performance

Boom Type

Boom Type AT/60.7

Boom Type -

Platform Capacity - Unrestricted

Platform Capacity - Unrestricted -

Platform Capacity - Unrestricted 230.02 kg

Platform Capacity - Unrestricted 227.02 kg

Drive Speed - Platform Lowered

Drive Speed - Platform Lowered -

Drive Speed - Platform Lowered 5.63 kph

Drive Speed - Platform Lowered 7.72 kph

Years

Years 2013-2020

Years 2004-2014

Years 2013-2020

Market Average

Market Average AED 19,800

Market Average AED 162,000

Market Average AED 220,000

Price

Price AED 15,000

Price AED 89,000

Price AED 180,000

Dimensions

Stowed height

Stowed height 2.56 m

Stowed height 2.23 m

Stowed height 2.56 m

Overall Width

Overall Width 2.44 m

Overall Width 2.26 m

Overall Width 2.47 m

Ground clearance

Ground clearance -

Ground clearance 38.1 cm

Ground clearance 39.12 cm

Overall Length

Overall Length -

Overall Length 5.56 m

Overall Length 9.42 m

Turning radius

Turning radius -

Turning radius 4.02 m

Turning radius 2.23 m

Wheelbase

Wheelbase -

Wheelbase 2.01 m

Wheelbase 2.47 m

Axle Oscillation

Axle Oscillation -

Axle Oscillation 10.18 m

General

Tire size

Tire size 14x17.5

Tire size 350-14-17.5

Tire size 10.5 x 17.5

Drive type

Drive type 4WD

Drive type -

Fuel type

Fuel type -

Fuel type Diesel

Fuel type -

Max horizontal reach

Max horizontal reach -

Max horizontal reach 9,110 mm

Max horizontal reach 7,560 mm

Max working height

Max working height -

Max working height 16 m

Max working height -

Operating weight

Operating weight -

Operating weight 6,850 kg

Operating weight 9,616 kg

Platform rotation

Platform rotation -

Platform rotation 180 º

Platform rotation -

Gradeability

Gradeability -

Gradeability 45 º

Service refill capacities

Fuel cap

Fuel cap -

Fuel cap 55.26 liter

Fuel cap 115.06 liter

Hydraulic fluid cap

Hydraulic fluid cap -

Hydraulic fluid cap 100.3 liter

Hydraulic fluid cap 115.06 liter

Engine

Gross power

Gross power -

Gross power 31.02 kw

Gross power 61.15 kw

Operating specifications

Raise time

Raise time -

Raise time 45 seconds

Raise time -

Tire Type

Tire Type -

Tire Type foam filled

Tire Type Grip lug air-filled

Platform

Platform Dimension B

Platform Dimension B -

Platform Dimension B 1.81 m

Platform Dimension B -

Platform Dimension A

Platform Dimension A -

Platform Dimension A 0.81 m

Platform Dimension A -

Jib Length

Jib Length -

Jib Length 1.71 m

Undercarriage

Ground pressure

Ground pressure -

Ground pressure 11.51 bar

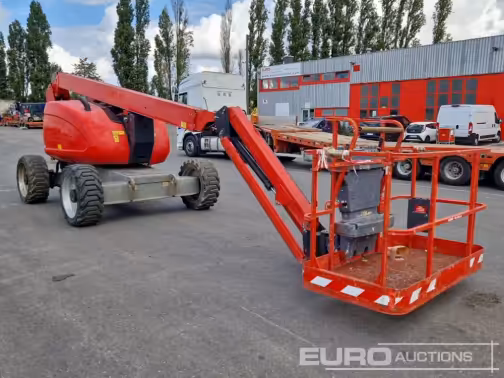

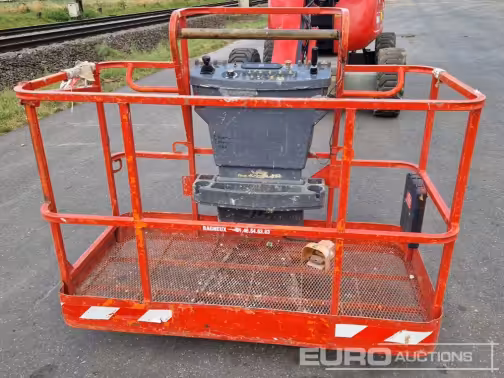

JLG 600 gallery
