JLG 1930 Scissor lifts tech specs

makana img
video play button

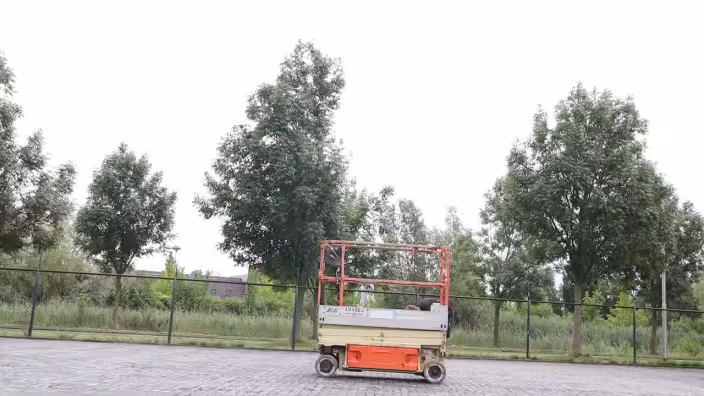

Video[1]
Interior [1]
Exterior [4]
Attachments [1]
2005-2021
90.17 cm Deck extension
5,730 mm Max horizontal reach
7.59 m Max working height
1,229 kg Operating weight
120 kg Platform Capacity - Extension
12.5x4 Tire size

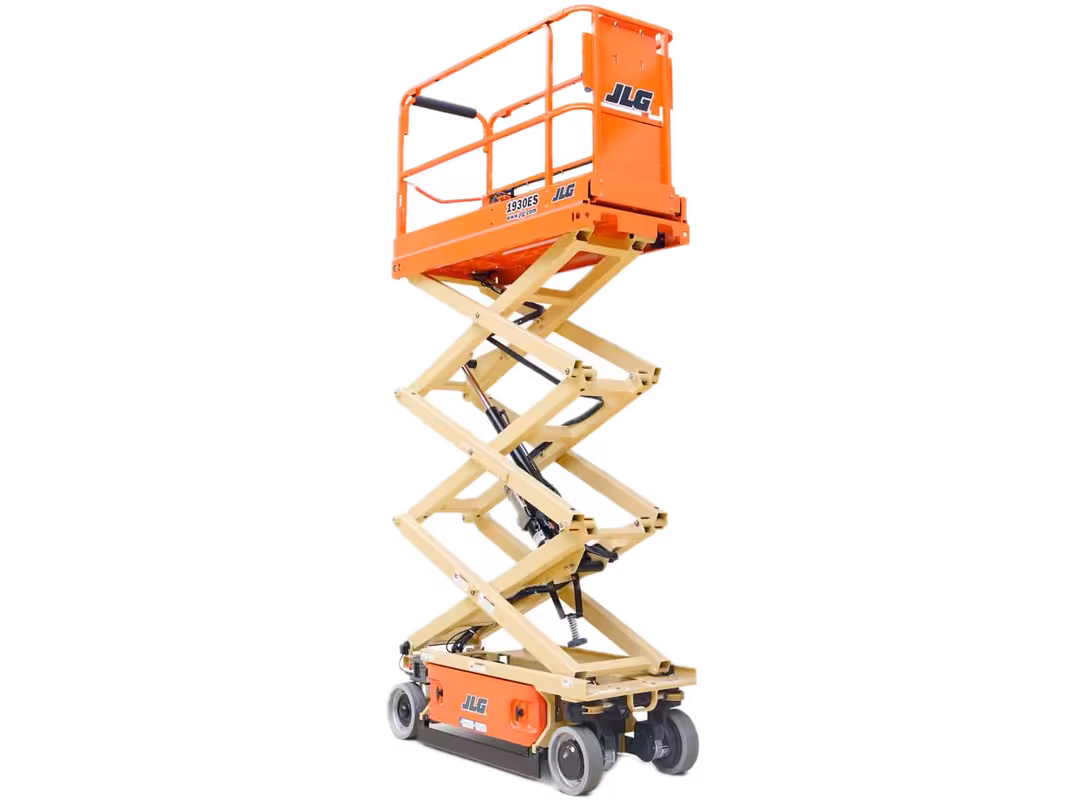

The JLG 1930ES (2005–2021) is a compact electric slab scissor with a working height of ~7.72 m (25.3 ft), a narrow 0.76 m (2.5 ft) width, and a sturdy 230 kg capacity. It fits through tight doorways, works smooth, and stays working—not a showboat, but a daily beast.

Working Height: ~7.72 m (~25.3 ft)

Platform Capacity: 230 kg (~507 lb) net; 113 kg (~250 lb) on extension

Stowed Width: 0.76 m (2.5 ft), Length ~1.87 m

Platform Size: ~0.76 m × 1.87 m with ~0.9 m slide-out deck

Operating Weight: ~1,550 kg (3,420 lb)

Drive Speeds: ~4.8 km/h lowered, ~0.8 km/h elevated

Lift/Lower Time: Lift ~26 sec, Lower ~30 sec

Gradeability: ~25%

Turning Radius (Outside): ~1.75 m (69 in)

Power: 24 V electric (4 × 6 V batteries), auto charger 20 A

Makana rating

Owner rating

 | 1

Market average

AED 65,000

Starting from

AED 38,000

JLG 1930 Technical specifications

Engine

Battery amps

220 Amh

Charger amps

20 Amh

Number of batteries

4

Operating specifications

Brake system

Electric, Friction

Deck extension

90.17 cm

Platform railing height

113 cm

Raise time

20 seconds

Lower time

30 seconds

Tire Type

Solid, Non-marking

Transmission

Drive speed - platform elevated

0.8 kph

Performance

Drive Speed - Platform Lowered

4.83 kph

Platform Capacity - Extension

120 kg

Platform Capacity - Unrestricted

230 kg

General

Drive type

24V Electric

Gradeability

25 º

Max horizontal reach

5730 mm

Max working height

7.59 m

Operating weight

1,229 kg

Operating voltage

24 V

Tire size

12.5x4

Dimensions

Ground clearance

10.16 cm

Height w/ Rails

2.01 m

Height w/o Rails

1.58 m

Overall Length

18.8 m

Overall Width

0.79 m

Stowed height

0.88 m

Turning radius

1.74 m

Wheelbase

1.62 m

Undercarriage

Ground pressure

7.52 bar

Hydraulic system

Pump type

Fixed Displacement Gear

Service refill capacities

Hydraulic fluid cap

4.54 liter

Platform

Platform Dimension A

0.79 m

Platform Dimension B

1.89 m

View more
Download datasheets
OEM product brochure

JLG 1930 expert review

Reviewed by Mohamad H. on September 10, 2025

Overview

Compact and rugged—this lift is made for tight jobs with minimal downtime and simple service.

Pros Narrow and efficient.
Durable, low-maintenance, smooth controls.
Cons Light capacity only.
Moderate weight—requires logistical thought.

Performance & Efficiency

Fast cycle times and smooth control keep it hands-free—and working.

Verdict

The 1930ES is your dependable, compact go-to scissor—nothing flashy, everything functional.

Show less

JLG 1930 owner rating

JLG 1930 Scissor lifts [2005-2021]

2005-2021

Overall rating

Based on 1 ratings

4.0
5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Valuation

Last 12 month
2005

JLG 1930 similar models

Highlight differences
JLG 1930ES
Skyjack SJ6832 RT
JLG 1932RS
Engine
Battery amps 220 Amh
Battery amps -
Battery amps 220 Amh
Charger amps 20 Amh
Charger amps -
Charger amps 25 Amh
Number of batteries 4
Number of batteries -
Number of batteries -
Gross power -
Gross power 3.5 kw
Gross power -
Years 2005-2021
Years 2007-2025
Years 2017-2020
Market Average AED 65,000
Market Average AED 170,000
Market Average AED 85,000
Price AED 38,000
Price AED 106,000
Price AED 64,000
Operating specifications
Brake system Electric, Friction
Brake system -
Brake system Electric, friction
Deck extension 90.17 cm
Deck extension 152.15 cm
Deck extension -
Platform railing height 113 cm
Platform railing height 70 cm
Platform railing height 101 cm
Raise time 20 seconds
Raise time 39 seconds
Raise time 25 seconds
Lower time 30 seconds
Lower time 36 seconds
Lower time 26 seconds
Tire Type Solid, Non-marking
Tire Type Foam Filled
Tire Type -
Transmission
Drive speed - platform elevated 0.8 kph
Drive speed - platform elevated -
Drive speed - platform elevated 4 kph
Performance
Drive Speed - Platform Lowered 4.83 kph
Drive Speed - Platform Lowered 6.12 kph
Drive Speed - Platform Lowered 4 kph
Platform Capacity - Extension 120 kg
Platform Capacity - Extension -
Platform Capacity - Extension 113 kg
Platform Capacity - Unrestricted 230 kg
Platform Capacity - Unrestricted 454 kg
Platform Capacity - Unrestricted 227 kg
General
Drive type 24V Electric
Drive type -
Drive type 24V DC
Gradeability 25 º
Gradeability 40 º
Gradeability 25 º
Max horizontal reach 5,730 mm
Max horizontal reach -
Max horizontal reach -
Max working height 7.59 m
Max working height 11.58 m
Max working height 5.8 m
Operating weight 1,229 kg
Operating weight 3,475 kg
Operating weight 1,565 kg
Operating voltage 24 V
Operating voltage -
Operating voltage -
Tire size 12.5x4
Tire size 26 x 12
Tire size 3.18 x 10 cm
Fuel type -
Fuel type Gas/propane
Fuel type -
Dimensions
Ground clearance 10.16 cm
Ground clearance 20.07 cm
Ground clearance 7.87 cm
Height w/ Rails 2.01 m
Height w/ Rails 2.53 m
Height w/ Rails -
Height w/o Rails 1.58 m
Height w/o Rails 1.77 m
Height w/o Rails -
Overall Length 18.8 m
Overall Length 27.2 m
Overall Length 20.7 m
Overall Width 0.79 m
Overall Width 1.77 m
Overall Width 0.81 m
Stowed height 0.88 m
Stowed height 1.37 m
Stowed height -
Turning radius 1.74 m
Turning radius 3.96 m
Turning radius 2.2 m
Wheelbase 1.62 m
Wheelbase 2.04 m
Wheelbase 1.39 m
Undercarriage
Ground pressure 7.52 bar
Ground pressure -
Ground pressure 9.8 bar
Hydraulic system
Pump type Fixed Displacement Gear
Pump type -
Pump type -
Service refill capacities
Hydraulic fluid cap 4.54 liter
Hydraulic fluid cap -
Hydraulic fluid cap 5 liter
Platform
Platform Dimension A 0.79 m
Platform Dimension A 1.42 m
Platform Dimension A 1.82 m
Platform Dimension B 1.89 m
Platform Dimension B 2.44 m
Platform Dimension B 0.68 m
