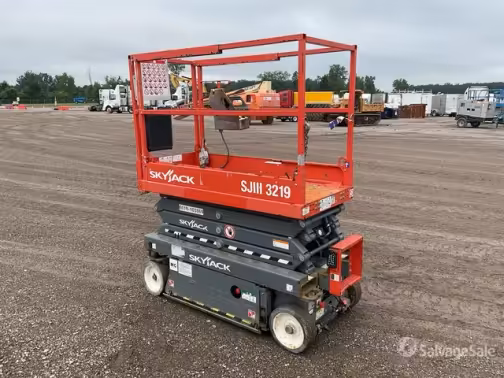

Skyjack SJIII Scissor lifts tech specs

makana img
video play button
Video[1]
Interior [2]
Exterior [4]
Attachments [2]
2010-2020
90.17 cm Deck extension
30 º Gradeability
249.02 kg Platform Capacity - Unrestricted
7.62 m Max working height
1,170 kg Operating weight
12 x 4 x 8 Tire size

The SkyJack SJIII series—specifically the 3219, 3226, and 4632—spans compact to high-reaching electric scissor lifts for indoor and construction use. Heights climb from 7.6 m to nearly 12 m, widths stay narrow (0.8–1.17 m), and capacities range 227–454 kg. Clean builds, drive‑at‑full‑height capability, and SkyJack’s SkyCoded wiring make these lifts reliable, practical, and uptime‑friendly.

Working height: ~7.79 m / ~ 12 m

Platform height: ~5.79 m / 9.75 m

Width 0.81 m / 1.17 m

Length 1.78 m / 2.31 m

Weight ~1,312 kg / 2,302 kg

Capacity 227 kg / 231 kg (restricted)

Makana rating

Owner rating

 | 1

Market average

AED 88,000

Starting from

AED 55,000

Skyjack SJIII technical specifications

Highlight differences

Skyjack SJIII 3219

Skyjack SJIII 3226

Skyjack SJIII 4632

Operating specifications
Deck extension 90.17 cm
Deck extension 91.19 cm
Deck extension 122.17 cm
Raise time 25 seconds
Raise time 56 seconds
Raise time 59 seconds
Lower time 29 seconds
Lower time 42 seconds
Lower time 49 seconds
Tire Type Solid/non marking
Tire Type Solid/non marking
Tire Type Solid/non marking
Years 2010-2020
Years 2010-2020
Years 2010-2020
Market Average AED 88,000
Market Average AED 88,000
Market Average AED 88,000
Price AED 55,000
Price AED 55,000
Price AED 55,000
General
Gradeability 30 º
Gradeability 30 º
Gradeability 25 º
Max working height 7.62 m
Max working height 9.75 m
Max working height 11.58 m
Operating weight 1,170 kg
Operating weight 1,592 kg
Operating weight 2,302 kg
Operating voltage 24 V
Operating voltage 24 V
Operating voltage 24 V
Tire size 12 x 4 x 8
Tire size 16 x 5 x 12
Tire size 16 x 5 x 12
Dimensions
Ground clearance 6.1 cm
Ground clearance 9.14 cm
Ground clearance 9.14 cm
Height w/ Rails 2.01 m
Height w/ Rails 2.01 m
Height w/ Rails 2.23 m
Height w/o Rails 1.62 m
Height w/o Rails 1.62 m
Height w/o Rails 1.92 m
Overall Length 15.24 m
Overall Length 19.33 m
Overall Length 19.33 m
Overall Width 0.82 m
Overall Width 0.82 m
Overall Width 1.22 m
Stowed height 1.99 m
Stowed height 1.14 m
Stowed height 1.23 m
Turning radius 1.71 m
Turning radius 1.28 m
Turning radius 2.38 m
Wheelbase 1.4 m
Wheelbase 1.83 m
Wheelbase 1.77 m
Performance
Platform Capacity - Unrestricted 249.02 kg
Platform Capacity - Unrestricted 227.02 kg
Platform Capacity - Unrestricted 318.01 kg
Drive Speed - Platform Lowered 3.22 kph
Drive Speed - Platform Lowered 3.22 kph
Drive Speed - Platform Lowered 3.22 kph
Platform
Platform Dimension B 1.63 m
Platform Dimension B 2.13 m
Platform Dimension B 2.13 m
Platform Dimension A 0.66 m
Platform Dimension A 0.71 m
Platform Dimension A 1.07 m
Download datasheets
OEM product brochure

Skyjack SJIII expert review

Reviewed by Wade A. on September 4, 2025

Overview

Simple, service-friendly scissor lifts. Drive-at-full-height, SkyCoded wiring, extension decks, telematics and accessories for utility and uptime.

Pros Narrow footprint, decent height and capacity.
Maintenance-friendly wiring and design.
Cons Limited payload—best for 1–3 persons.
Heavier and taller models need transport planning.

Performance & Efficiency

Fast cycles, smooth joystick control, drive speeds ~3 km/h, good gradeability and pothole protection.

Verdict

Choose SJIII 3219 for tight zones, SJIII 3226 or 4632 for extra reach—reliable, easy to operate and maintain.

Show less

Skyjack SJIII owner rating

Skyjack SJIII Scissor lifts [2010-2020]

2010-2020

Overall rating

Based on 1 ratings

4.0
5 stars

0 %

4 stars

100 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

Valuation

Last 12 month
2010

Skyjack SJIII similar models

Highlight differences
Skyjack SJIII 3219
Haulotte OPTIMUM 8
JLG 3246ES
Operating specifications
Deck extension 90.17 cm
Deck extension 92.2 cm
Deck extension 90.17 cm
Raise time 25 seconds
Raise time 23 seconds
Raise time 50 seconds
Lower time 29 seconds
Lower time 32 seconds
Lower time 50 seconds
Tire Type Solid/non marking
Tire Type Solid/non marking
Tire Type Solid, Non-marking
Brake system -
Brake system -
Brake system Electric, Friction
Platform railing height -
Platform railing height -
Platform railing height 113 cm
Years 2010-2020
Years 2002-2025
Years 2005-2021
Market Average AED 88,000
Market Average AED 53,000
Market Average AED 134,000
Price AED 55,000
Price AED 36,000
Price AED 95,000
General
Gradeability 30 º
Gradeability -
Gradeability 25 º
Max working height 7.62 m
Max working height 7.77 m
Max working height 9.69 m
Operating weight 1,170 kg
Operating weight 1,420 kg
Operating weight 2,168 kg
Operating voltage 24 V
Operating voltage 24 V
Operating voltage 24 V
Tire size 12 x 4 x 8
Tire size Dia 317
Tire size 16x5
Drive type -
Drive type -
Drive type 2WD
Dimensions
Ground clearance 6.1 cm
Ground clearance 8.13 cm
Ground clearance 12.7 cm
Height w/ Rails 2.01 m
Height w/ Rails 2.01 m
Height w/ Rails -
Height w/o Rails 1.62 m
Height w/o Rails 0.91 m
Height w/o Rails 1.98 m
Overall Length 15.24 m
Overall Length 14.8 m
Overall Length 21 m
Overall Width 0.82 m
Overall Width 0.76 m
Overall Width 1.19 m
Stowed height 1.99 m
Stowed height -
Stowed height 1.83 m
Turning radius 1.71 m
Turning radius 1.71 m
Turning radius 2.44 m
Wheelbase 1.4 m
Wheelbase 1.4 m
Wheelbase 2.1 m
Performance
Platform Capacity - Unrestricted 249.02 kg
Platform Capacity - Unrestricted 230.02 kg
Platform Capacity - Unrestricted 317.52 kg
Drive Speed - Platform Lowered 3.22 kph
Drive Speed - Platform Lowered 4.67 kph
Drive Speed - Platform Lowered 4.02 kph
Platform Capacity - Extension -
Platform Capacity - Extension -
Platform Capacity - Extension 113.4 kg
Platform
Platform Dimension B 1.63 m
Platform Dimension B 1.65 m
Platform Dimension B 1.16 m
Platform Dimension A 0.66 m
Platform Dimension A 0.7 m
Platform Dimension A 2.53 m
Engine
Battery amps -
Battery amps 180 Amh
Battery amps 220 Amh
Charger amps -
Charger amps 30 Amh
Charger amps 20 Amh
Number of batteries -
Number of batteries 4
Number of batteries 4
Service refill capacities
Hydraulic fluid cap -
Hydraulic fluid cap 18.17 liter
Hydraulic fluid cap 6.43 liter
Transmission
Drive speed - platform elevated -
Drive speed - platform elevated -
Drive speed - platform elevated 0.8 kph
Undercarriage
Ground pressure -
Ground pressure -
Ground pressure 6 bar
Hydraulic system
Pump type -
Pump type -
Pump type Fixed Displacement Gear
